AR head-up display (AR-HUD)

・ Video display 20m away

・ Large screen projection (148 “@ 20m)

・ Both large screen display and miniaturization of the set

Features

project		Features
Video display 20m away		Safe with little viewpoint movement
Large screen projection (148 “@ 20m)		Large image and good visibility
Both large screen display and miniaturization of the set		Can be installed from light vehicles to large vehicles

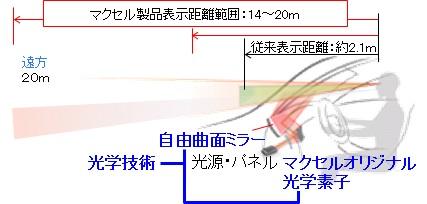

Figure 1. HUD display image	Figure 2. system configuration diagram

Technical explanation

・ Achieves distant display of virtual images, larger screens, and smaller sets using free-form surface optical technology

・ High-efficiency backlight using cooling technology and light guide technology realizes miniaturization of the set

・ Highly accurate correction of distortion caused by glass using image processing technology cultivated in projectors
